eJPT - Assessment Methodologies: Footprinting and Scanning CTF 1
Overview:
Reconnaissance is the initial phase of a penetration testing process where information about a target system is gathered to identify potential vulnerabilities. This phase involves actively or passively collecting data such as server headers, open ports, exposed directories, and system configurations. Techniques like scanning, querying DNS records, examining web application files (e.g., robots.txt), and analyzing response headers help uncover critical information that can aid in later exploitation phases. Effective reconnaissance allows testers to map the attack surface, prioritize targets, and plan their approach with minimal detection by the system’s defenses.
This lab is designed to test your knowledge and skills in performing reconnaissance and identifying hidden information on a target web server.
Lab Environment
In this lab environment, you will be provided with GUI access to a Kali Linux machine. The target machine will be accessible at http://target.ine.local.
Objective: Perform reconnaissance on the target and capture all the flags hidden within the environment.
Flags to Capture:
- Flag 1: The server proudly announces its identity in every response. Look closely; you might find something unusual.
- Flag 2: The gatekeeper’s instructions often reveal what should remain unseen. Don’t forget to read between the lines.
- Flag 3: Anonymous access sometimes leads to forgotten treasures. Connect and explore the directory; you might stumble upon something valuable.
- Flag 4: A well-named database can be quite revealing. Peek at the configurations to discover the hidden treasure.
Tools
The best tools for this lab are:
- Nmap
- FTP
- MySQL
Note
In this lab, the flag will follow the format: FLAG1MD5Hash. For example, FLAG1_0f4d0db3668dd58cabb9eb409657eaa8. You need to submit only the MD5 hash string, excluding the underscore (). For instance: 0f4d0db3668dd58cabb9eb409657eaa8.
Question 1:
The server proudly announces its identity in every response. Look closely; you might find something unusual.
To gather the information about the target machine we’ll use the trusty Nmap tools, and took a closer look of what it gives, and here is the command to run against machine.
1
nmap -Pn -sV -sC -p- target.ine.local
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
┌──(root㉿INE)-[~]
└─# nmap -Pn -sV -sC -p- target.ine.local
Starting Nmap 7.94SVN ( https://nmap.org ) at 2025-05-20 15:02 IST
Nmap scan report for target.ine.local (192.11.142.3)
Host is up (0.000021s latency).
Not shown: 65527 closed tcp ports (reset)
PORT STATE SERVICE VERSION
21/tcp open ftp vsftpd 3.0.5
| ftp-syst:
| STAT:
| FTP server status:
| Connected to ::ffff:192.11.142.2
| Logged in as ftp
| TYPE: ASCII
| No session bandwidth limit
| Session timeout in seconds is 300
| Control connection is plain text
| Data connections will be plain text
| At session startup, client count was 3
| vsFTPd 3.0.5 - secure, fast, stable
|_End of status
| ftp-anon: Anonymous FTP login allowed (FTP code 230)
| -rw-r--r-- 1 0 0 22 Oct 28 2024 creds.txt
|_-rw-r--r-- 1 0 0 39 May 20 09:24 flag.txt
22/tcp open ssh OpenSSH 8.9p1 Ubuntu 3ubuntu0.10 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
| 256 a5:93:0f:6b:5a:77:f1:77:e8:2e:c9:31:e7:df:66:06 (ECDSA)
|_ 256 b6:0d:e4:92:36:30:79:b7:31:91:3b:a0:1f:c1:ee:85 (ED25519)
25/tcp open smtp Postfix smtpd
|_ssl-date: TLS randomness does not represent time
|_smtp-commands: localhost.members.linode.com, PIPELINING, SIZE 10240000, VRFY, ETRN, STARTTLS, ENHANCEDSTATUSCODES, 8BITMIME, DSN, SMTPUTF8, CHUNKING
| ssl-cert: Subject: commonName=localhost
| Subject Alternative Name: DNS:localhost
| Not valid before: 2024-10-28T06:10:50
|_Not valid after: 2034-10-26T06:10:50
80/tcp open http Werkzeug/3.0.6 Python/3.10.12
|_http-server-header: Werkzeug/3.0.6 Python/3.10.12
|_http-title: CTF Challenge
| http-robots.txt: 3 disallowed entries
|_/photos /secret-info/ /data/
| fingerprint-strings:
| GetRequest:
| HTTP/1.1 200 OK
| Server: Werkzeug/3.0.6 Python/3.10.12
| Date: Tue, 20 May 2025 09:32:16 GMT
| Content-Type: text/html; charset=utf-8
| Content-Length: 2557
| Server: FLAG1_e33ed006765e48e1****************
| Connection: close
| <!DOCTYPE html>
| <html lang="en">
| <head>
| <meta charset="UTF-8">
| <meta name="viewport" content="width=device-width, initial-scale=1.0">
| <link rel="shortcut icon" href="#">
| <title>CTF Challenge</title>
| <style>
| body {
| font-family: 'Arial', sans-serif;
| margin: 0;
| padding: 0;
| background-color: #1c1c1c;
| color: #fff;
| background-color: #333;
| padding: 15px;
| text-align: center;
| list-style: none;
| margin: 0;
| padding: 0;
| display:
| HTTPOptions:
| HTTP/1.1 200 OK
| Server: Werkzeug/3.0.6 Python/3.10.12
| Date: Tue, 20 May 2025 09:32:16 GMT
| Content-Type: text/html; charset=utf-8
| Allow: OPTIONS, HEAD, GET
| Server: FLAG1_e33ed006765e48e1909ac79b9bfc6915
| Content-Length: 0
|_ Connection: close
143/tcp open imap Dovecot imapd (Ubuntu)
|_imap-capabilities: have OK more SASL-IR LOGIN-REFERRALS Pre-login IMAP4rev1 capabilities STARTTLS LOGINDISABLEDA0001 ENABLE listed LITERAL+ post-login IDLE ID
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=localhost
| Subject Alternative Name: DNS:localhost
| Not valid before: 2024-10-28T06:10:50
|_Not valid after: 2034-10-26T06:10:50
993/tcp open ssl/imap Dovecot imapd (Ubuntu)
|_ssl-date: TLS randomness does not represent time
|_imap-capabilities: have OK AUTH=PLAINA0001 LOGIN-REFERRALS SASL-IR IMAP4rev1 capabilities more Pre-login ENABLE listed LITERAL+ post-login IDLE ID
| ssl-cert: Subject: commonName=localhost
| Subject Alternative Name: DNS:localhost
| Not valid before: 2024-10-28T06:10:50
|_Not valid after: 2034-10-26T06:10:50
3306/tcp open mysql MySQL 8.0.39-0ubuntu0.22.04.1
|_ssl-date: TLS randomness does not represent time
| mysql-info:
| Protocol: 10
| Version: 8.0.39-0ubuntu0.22.04.1
| Thread ID: 44
| Capabilities flags: 65535
| Some Capabilities: SupportsLoadDataLocal, ODBCClient, InteractiveClient, SupportsCompression, Speaks41ProtocolOld, DontAllowDatabaseTableColumn, IgnoreSigpipes, LongPassword, SwitchToSSLAfterHandshake, IgnoreSpaceBeforeParenthesis, Speaks41ProtocolNew, Support41Auth, SupportsTransactions, LongColumnFlag, FoundRows, ConnectWithDatabase, SupportsMultipleStatments, SupportsMultipleResults, SupportsAuthPlugins
| Status: Autocommit
| Salt: A//]\x1173\x18\x14IjAYa="O`J\x08
|_ Auth Plugin Name: caching_sha2_password
| ssl-cert: Subject: commonName=MySQL_Server_8.0.39_Auto_Generated_Server_Certificate
| Not valid before: 2024-10-28T06:11:13
|_Not valid after: 2034-10-26T06:11:13
33060/tcp open mysqlx?
| fingerprint-strings:
| DNSStatusRequestTCP, LDAPSearchReq, NotesRPC, SSLSessionReq, TLSSessionReq, X11Probe, afp:
| Invalid message"
| HY000
| LDAPBindReq:
| *Parse error unserializing protobuf message"
| HY000
| oracle-tns:
| Invalid message-frame."
|_ HY000
2 services unrecognized despite returning data. If you know the service/version, please submit the following fingerprints at https://nmap.org/cgi-bin/submit.cgi?new-service :
With that we found the first flag plain in this fields. now let’s gather the information about the target and move further for finding more flags and exploiting system!!!
Questions 2:

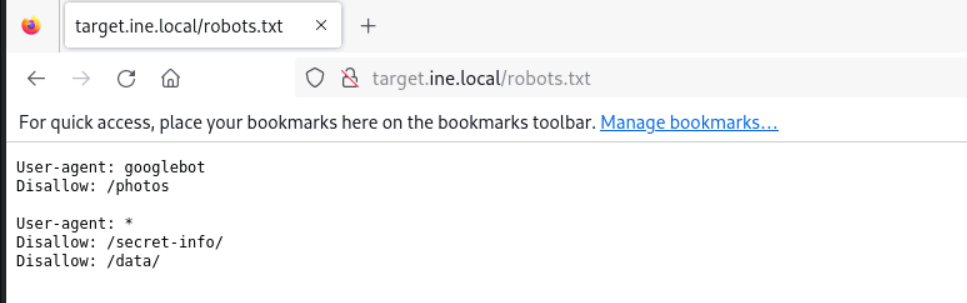

The gatekeeper’s instructions often reveal what should remain unseen. Don’t forget to read between the lines.
Gatekeeper’s haa it could possible tells us about the firewall or the robots text file on the system, since gatekeeper we’ll move on with robots first,

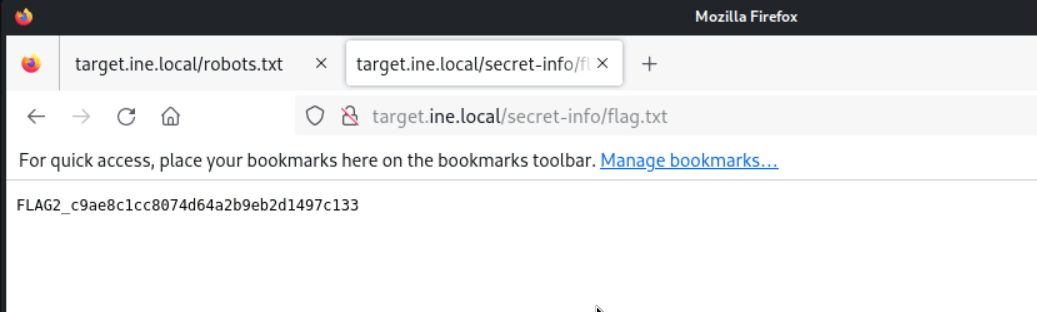

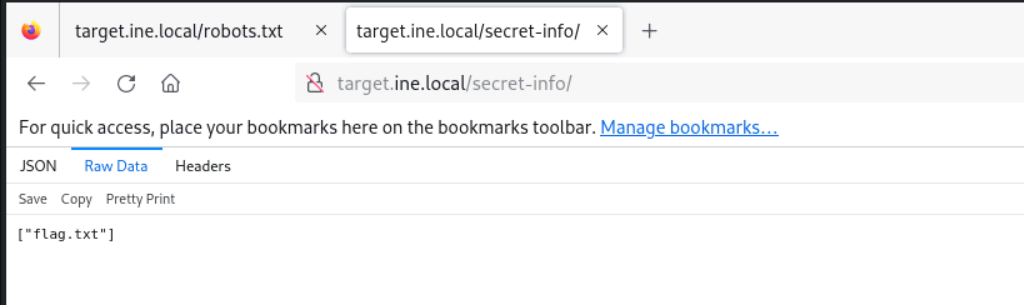

Bingo we found a few directory’s let’s take a closer look, and we found a file called flag.txt which is what we are looking for.
with that we found the next flag!!
Question 3:
Anonymous access sometimes leads to forgotten treasures. Connect and explore the directory; you might stumble upon something valuable.
For this we are already able to identify two files on the ftp with the help of Nmap scan results and the name of the files are creds.txt and flag.txt here is the Nmap results we already able to get gather for the first flag or the information gathering with Nmap. this shows that anonymous access is allowed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
┌──(root㉿INE)-[~]
└─# nmap -Pn -sV -sC -p- target.ine.local
Starting Nmap 7.94SVN ( https://nmap.org ) at 2025-05-20 15:02 IST
Nmap scan report for target.ine.local (192.11.142.3)
Host is up (0.000021s latency).
Not shown: 65527 closed tcp ports (reset)
PORT STATE SERVICE VERSION
21/tcp open ftp vsftpd 3.0.5
| ftp-syst:
| STAT:
| FTP server status:
| Connected to ::ffff:192.11.142.2
| Logged in as ftp
| TYPE: ASCII
| No session bandwidth limit
| Session timeout in seconds is 300
| Control connection is plain text
| Data connections will be plain text
| At session startup, client count was 3
| vsFTPd 3.0.5 - secure, fast, stable
|_End of status
| ftp-anon: Anonymous FTP login allowed (FTP code 230)
| -rw-r--r-- 1 0 0 22 Oct 28 2024 creds.txt
|_-rw-r--r-- 1 0 0 39 May 20 09:24 flag.txt
what is being there let’s download those files to our system with a command get
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
┌──(root㉿INE)-[~]
└─# ftp target.ine.local
Connected to target.ine.local.
220 (vsFTPd 3.0.5)
Name (target.ine.local:root): anonymous
331 Please specify the password.
Password:
230 Login successful.
Remote system type is UNIX.
Using binary mode to transfer files.
ftp> dir
229 Entering Extended Passive Mode (|||47206|)
150 Here comes the directory listing.
-rw-r--r-- 1 0 0 22 Oct 28 2024 creds.txt
-rw-r--r-- 1 0 0 39 May 20 09:24 flag.txt
226 Directory send OK.
ftp> get creds.txt
local: creds.txt remote: creds.txt
229 Entering Extended Passive Mode (|||22346|)
150 Opening BINARY mode data connection for creds.txt (22 bytes).
100% |**********************************************************************************************************************************************| 22 143.22 KiB/s 00:00 ETA
226 Transfer complete.
22 bytes received in 00:00 (48.60 KiB/s)
ftp> get flag.txt
local: flag.txt remote: flag.txt
229 Entering Extended Passive Mode (|||21695|)
150 Opening BINARY mode data connection for flag.txt (39 bytes).
100% |**********************************************************************************************************************************************| 39 718.60 KiB/s 00:00 ETA
226 Transfer complete.
39 bytes received in 00:00 (135.05 KiB/s)
ftp>
let’s see what was in those files and we got a creds for a database and flag3!!!
1
2
3
4
┌──(root㉿INE)-[~]
└─# cat creds.txt flag.txt
db_admin:password****
FLAG3_4005df6e7c89451e9d1f062******
Question 4:
A well-named database can be quite revealing. Peek at the configurations to discover the hidden treasure.
With Nmap results saying that we having MySQL service running, we’ll login with it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
3306/tcp open mysql MySQL 8.0.39-0ubuntu0.22.04.1
|_ssl-date: TLS randomness does not represent time
| mysql-info:
| Protocol: 10
| Version: 8.0.39-0ubuntu0.22.04.1
| Thread ID: 44
| Capabilities flags: 65535
| Some Capabilities: SupportsLoadDataLocal, ODBCClient, InteractiveClient, SupportsCompression, Speaks41ProtocolOld, DontAllowDatabaseTableColumn, IgnoreSigpipes, LongPassword, SwitchToSSLAfterHandshake, IgnoreSpaceBeforeParenthesis, Speaks41ProtocolNew, Support41Auth, SupportsTransactions, LongColumnFlag, FoundRows, ConnectWithDatabase, SupportsMultipleStatments, SupportsMultipleResults, SupportsAuthPlugins
| Status: Autocommit
| Salt: A//]\x1173\x18\x14IjAYa="O`J\x08
|_ Auth Plugin Name: caching_sha2_password
| ssl-cert: Subject: commonName=MySQL_Server_8.0.39_Auto_Generated_Server_Certificate
| Not valid before: 2024-10-28T06:11:13
|_Not valid after: 2034-10-26T06:11:13
33060/tcp open mysqlx?
| fingerprint-strings:
| DNSStatusRequestTCP, LDAPSearchReq, NotesRPC, SSLSessionReq, TLSSessionReq, X11Probe, afp:
| Invalid message"
| HY000
| LDAPBindReq:
| *Parse error unserializing protobuf message"
| HY000
| oracle-tns:
| Invalid message-frame."
|_ HY000

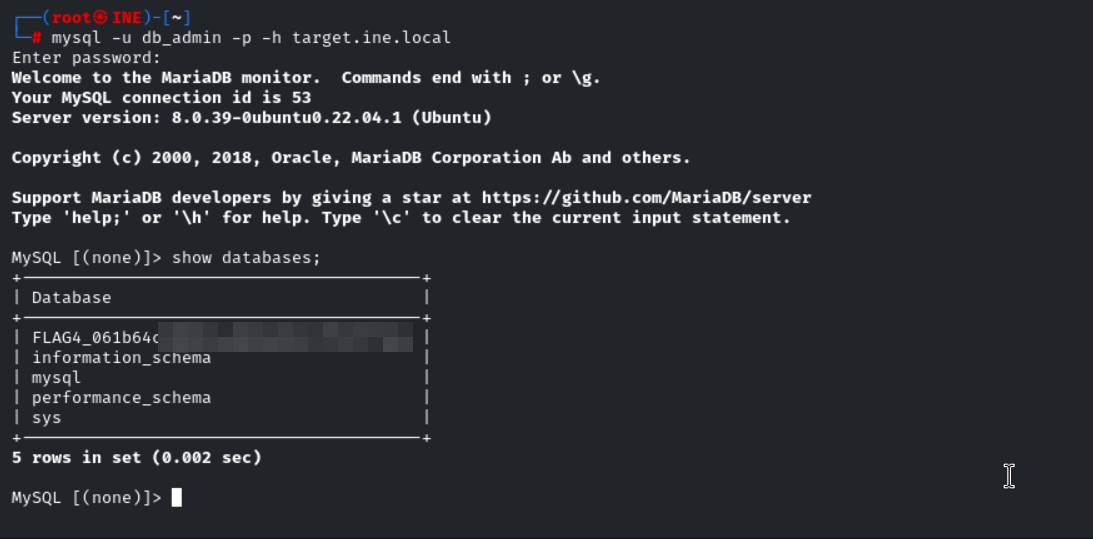

here is the MySQL command to connect to services
1
mysql -u db_admin -p -h target.ine.local
With that room comes to an end!!!
